Set out the architectural decorative shape from the building drawing. Confirm 3D shape and sightlines; agree module joints, supporting frame and finish sample before tooling.
Project Type
Architectural Decorative Shape
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the architectural decorative shape; define module joints and supporting frame before fabrication and finish sample before final inspection.
Review the elevation and supporting substrate. Compare 3D shape and sightlines with the supplied drawing, sample or site survey before approving the part definition.
Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around module joints and supporting frame; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify finish sample against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

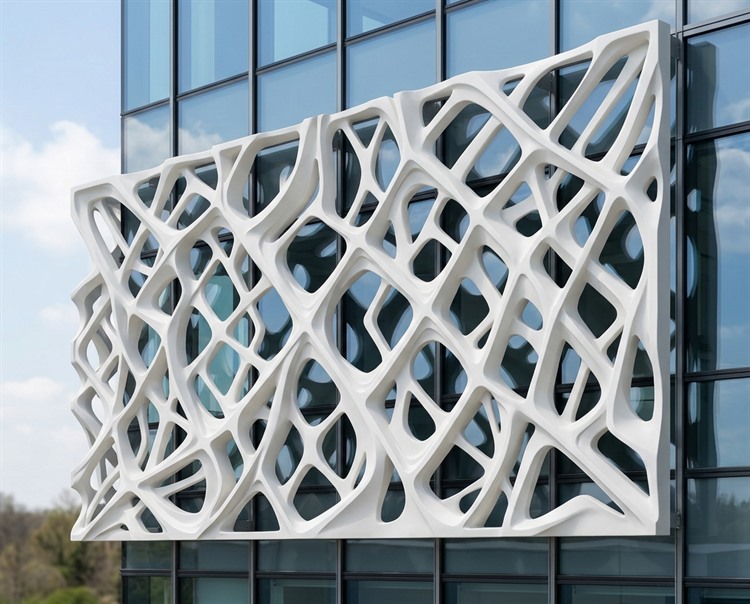

For a non-standard facade or entrance form, confirm 3D shape and sightlines against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify 3D shape, sightlines, module joints, supporting frame and finish sample in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing 3D shape and sightlines, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show module joints and supporting frame on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State finish sample, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
