Left and right canards must match the bumper curvature and each other. Define attachment points, edge shape and visible weave from the vehicle reference part.
Project Type
Carbon Fiber Aero Canard Set
Core Material
Carbon Fiber
Lead Time
Confirmed After Design Review
Surface Finish
Clear-Coat Finish
How we make it
Review the mating part and use conditions for the carbon fiber aero canard set; define attachment and edge profile before fabrication and visible weave before final inspection.

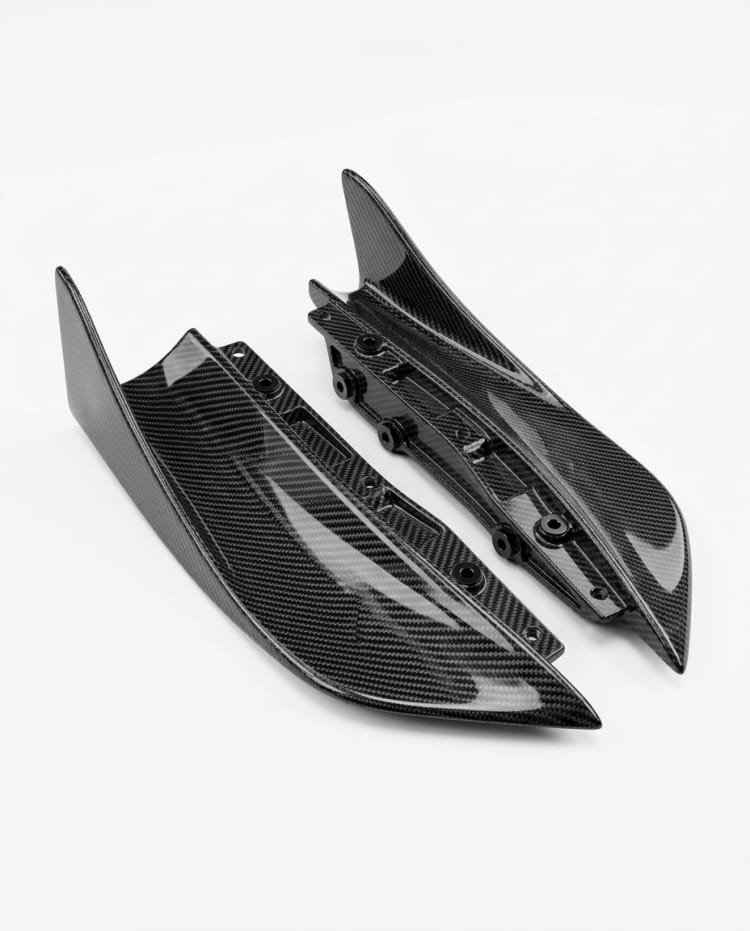

Review the mating part and use conditions. Compare left-right symmetry and bumper curvature with the supplied drawing, sample or site survey before approving the part definition.
Plan layup, trim and attachment references. Set the proposed build and interface details around attachment and edge profile; agree any unverified requirement before fabrication.

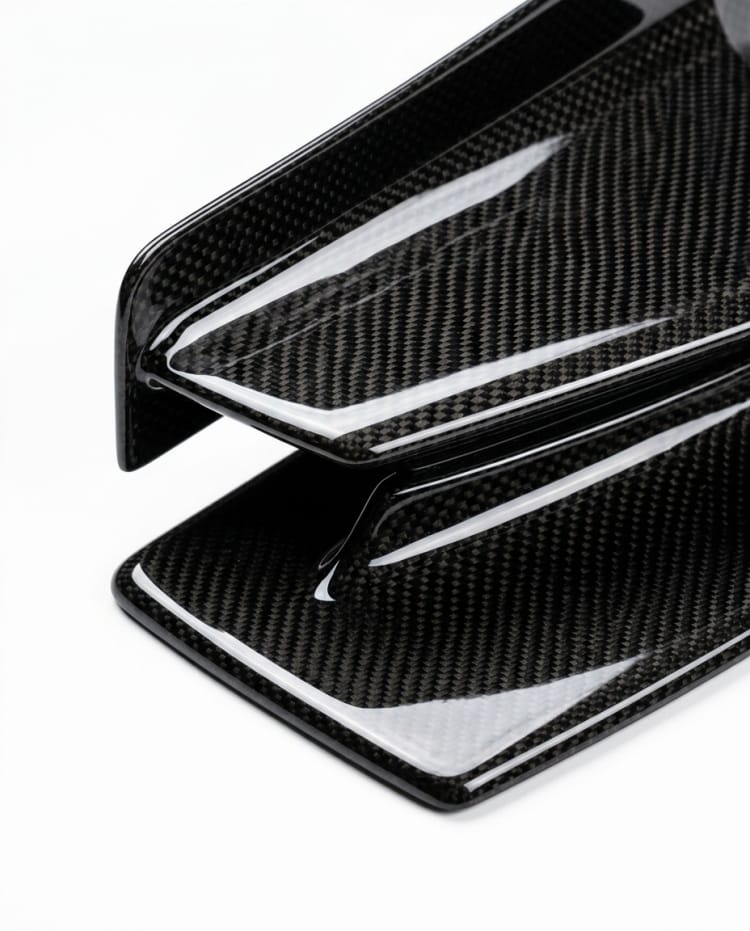

Check edge fit, visible finish and protection. Verify visible weave against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

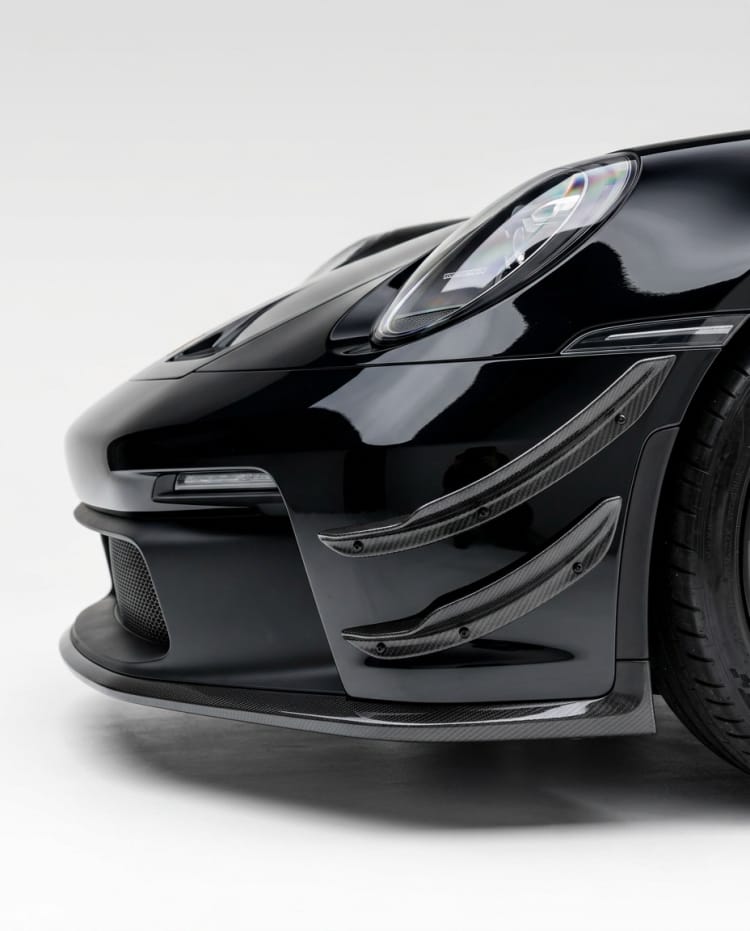

For a paired aerodynamic trim set on a vehicle front end, confirm left-right symmetry and bumper curvature against the buyer drawings. The mating vehicle part and attachment method determine fit and visible gaps.
Custom options
Specify left-right symmetry, bumper curvature, attachment, edge profile and visible weave in the supplied drawings or project specification. These inputs guide part geometry, mounting and visible finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing left-right symmetry and bumper curvature, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show attachment and edge profile on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State visible weave, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
