Match the carbon fiber door sill plate to the mating part. Confirm sill length and door seal clearance; agree attachment, scuff exposure and edge finish before tooling.
Project Type
Carbon Fiber Door Sill Plate
Core Material
Carbon Fiber
Lead Time
Confirmed After Design Review
Surface Finish
Clear-Coat Finish
How we make it
Review the mating part and use conditions for the carbon fiber door sill plate; define attachment and scuff exposure before fabrication and edge finish before final inspection.

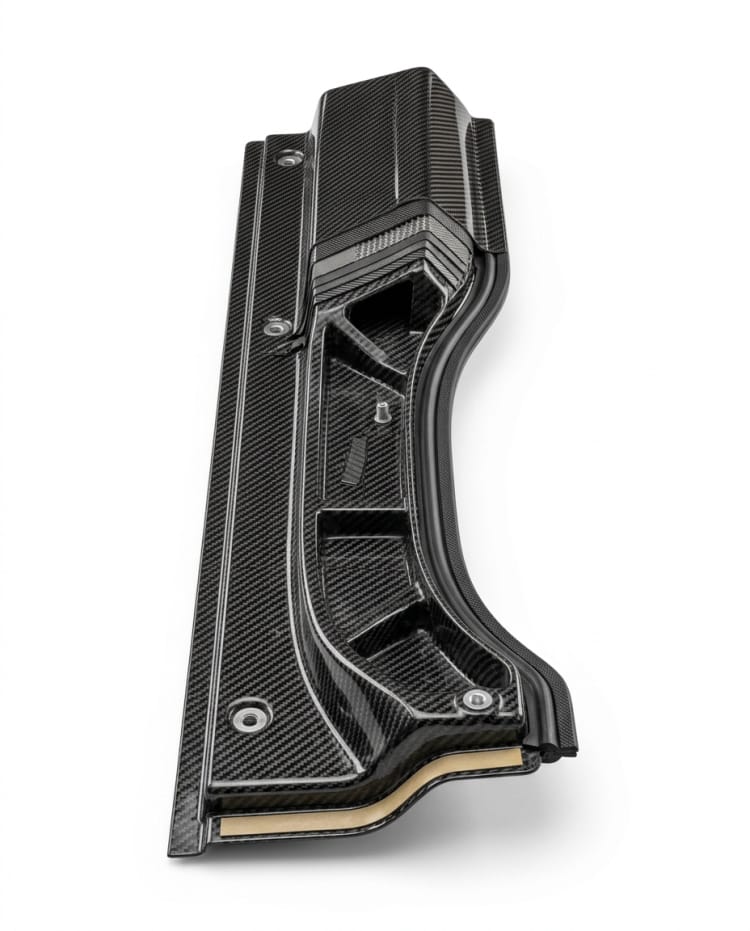

Review the mating part and use conditions. Compare sill length and door seal clearance with the supplied drawing, sample or site survey before approving the part definition.

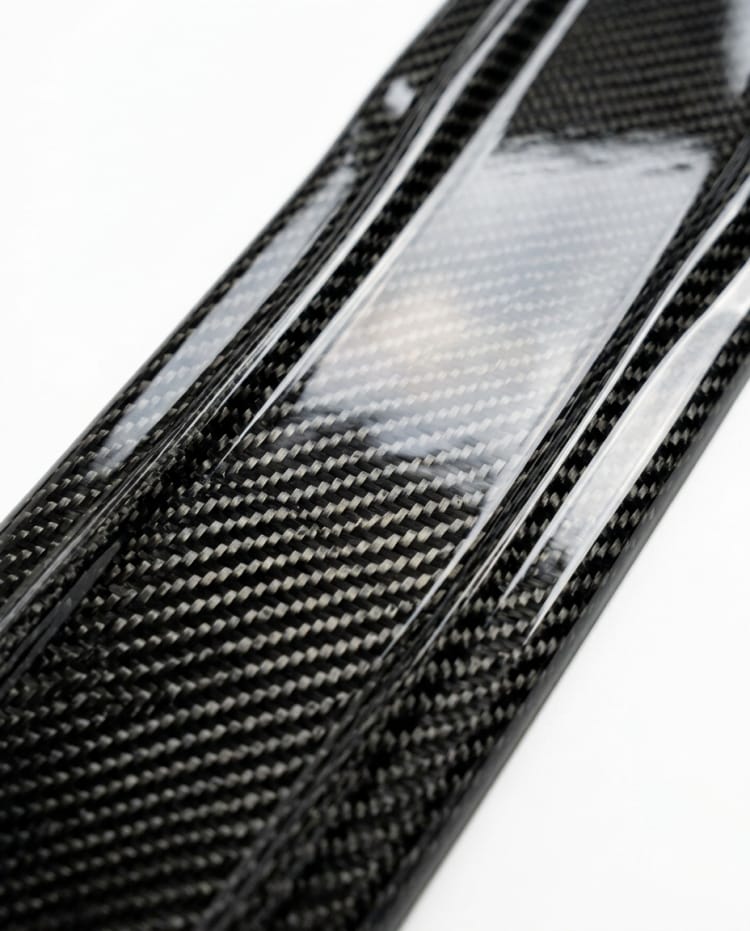

Plan layup, trim and attachment references. Set the proposed build and interface details around attachment and scuff exposure; agree any unverified requirement before fabrication.

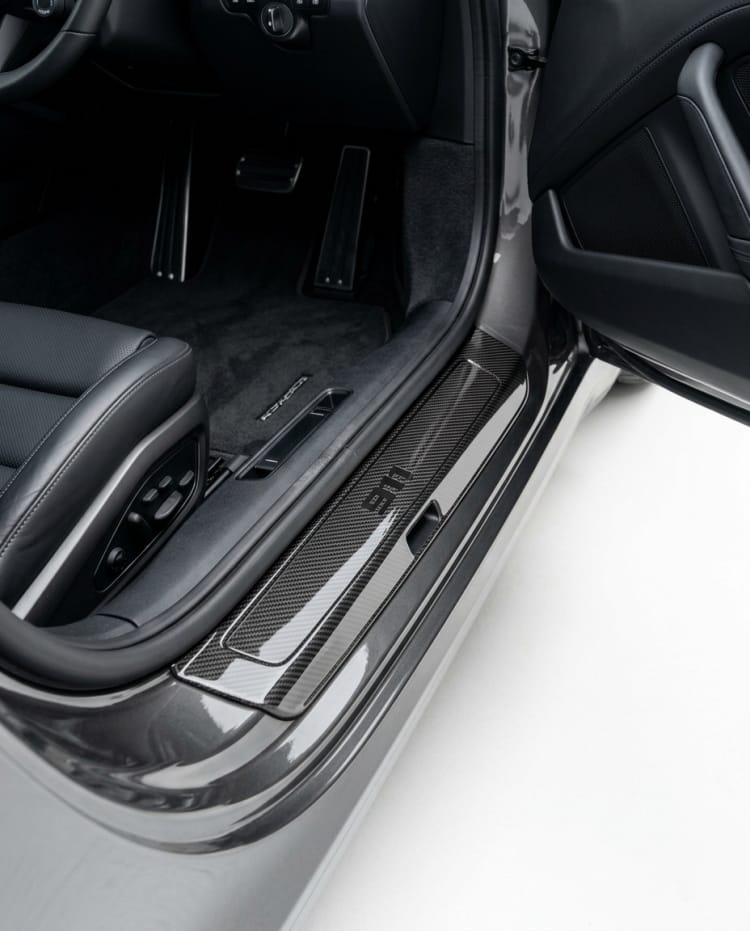

Check edge fit, visible finish and protection. Verify edge finish against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications
For trim over a vehicle door sill, confirm sill length and door seal clearance against the buyer drawings. The mating vehicle part and attachment method determine fit and visible gaps.
Custom options
Specify sill length, door seal clearance, attachment, scuff exposure and edge finish in the supplied drawings or project specification. These inputs guide part geometry, mounting and visible finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing sill length and door seal clearance, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show attachment and scuff exposure on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State edge finish, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
