Match the carbon fiber exhaust tip surround to the mating part. Confirm outlet clearance and heat exposure; agree bumper interface, fixing and finish specification before tooling.
Project Type
Carbon Fiber Exhaust Tip Surround
Core Material
Carbon Fiber
Lead Time
Confirmed After Design Review
Surface Finish
Clear-Coat Finish
How we make it
Review the mating part and use conditions for the carbon fiber exhaust tip surround; define bumper interface and fixing before fabrication and finish specification before final inspection.
Review the mating part and use conditions. Compare outlet clearance and heat exposure with the supplied drawing, sample or site survey before approving the part definition.

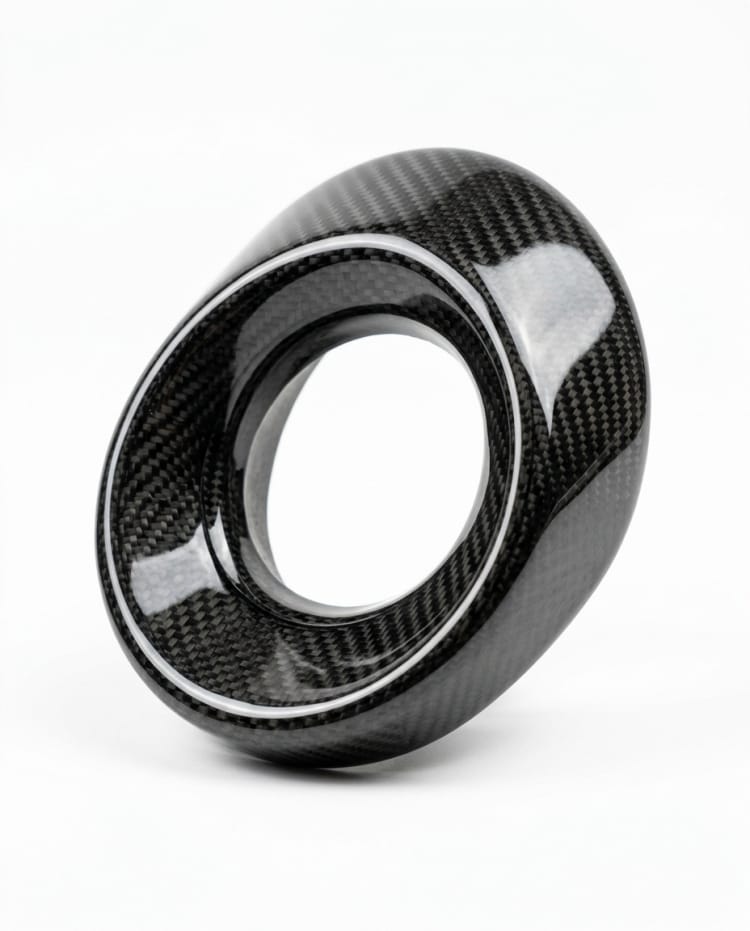

Plan layup, trim and attachment references. Set the proposed build and interface details around bumper interface and fixing; agree any unverified requirement before fabrication.
Check edge fit, visible finish and protection. Verify finish specification against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

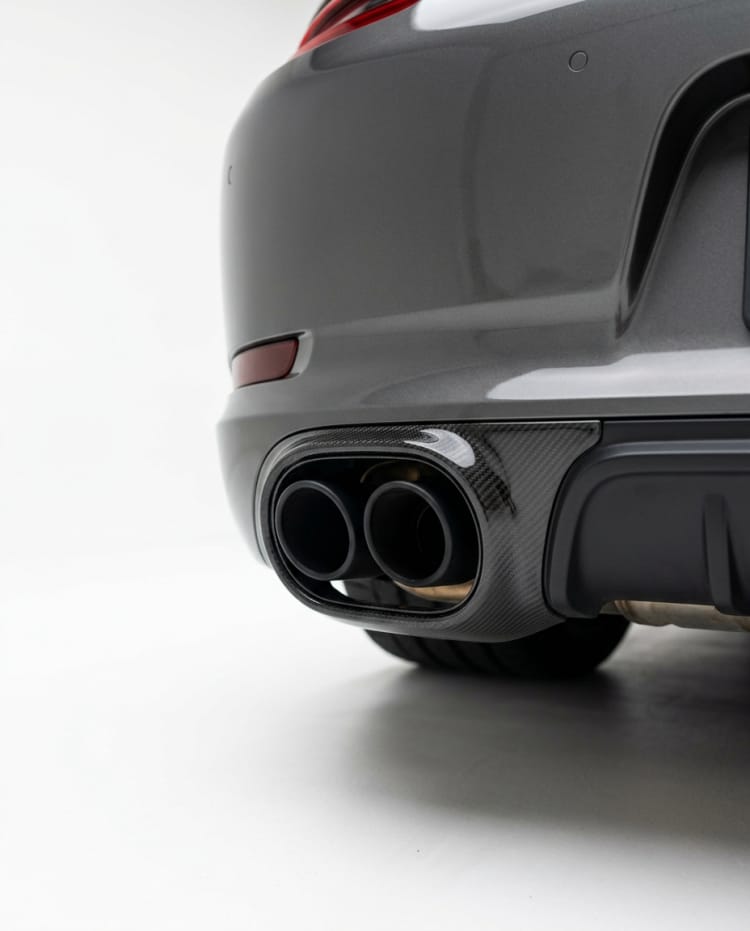

For trim at an exhaust outlet, confirm outlet clearance and heat exposure against the buyer drawings. The mating vehicle part and attachment method determine fit and visible gaps.
Custom options

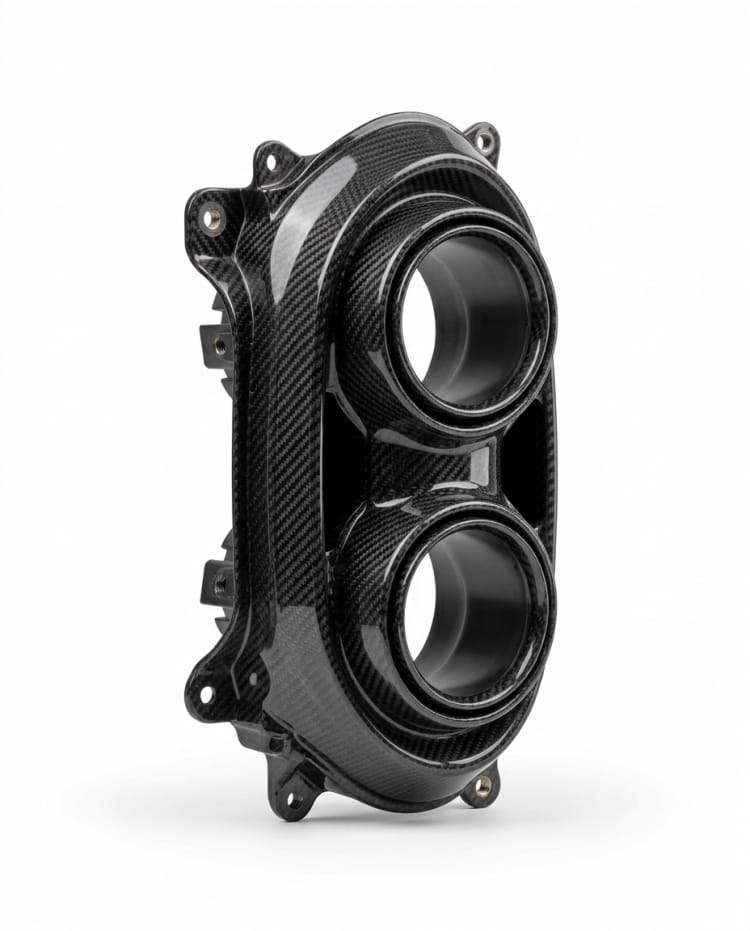

Specify outlet clearance, heat exposure, bumper interface, fixing and finish specification in the supplied drawings or project specification. These inputs guide part geometry, mounting and visible finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing outlet clearance and heat exposure, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show bumper interface and fixing on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State finish specification, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
