Match the carbon fiber rear diffuser to the mating part. Confirm bumper geometry and exhaust clearance; agree mount points, road clearance and visible weave before tooling.
Project Type
Carbon Fiber Rear Diffuser
Core Material
Carbon Fiber
Lead Time
Confirmed After Design Review
Surface Finish
Clear-Coat Finish
How we make it
Review the mating part and use conditions for the carbon fiber rear diffuser; define mount points and road clearance before fabrication and visible weave before final inspection.

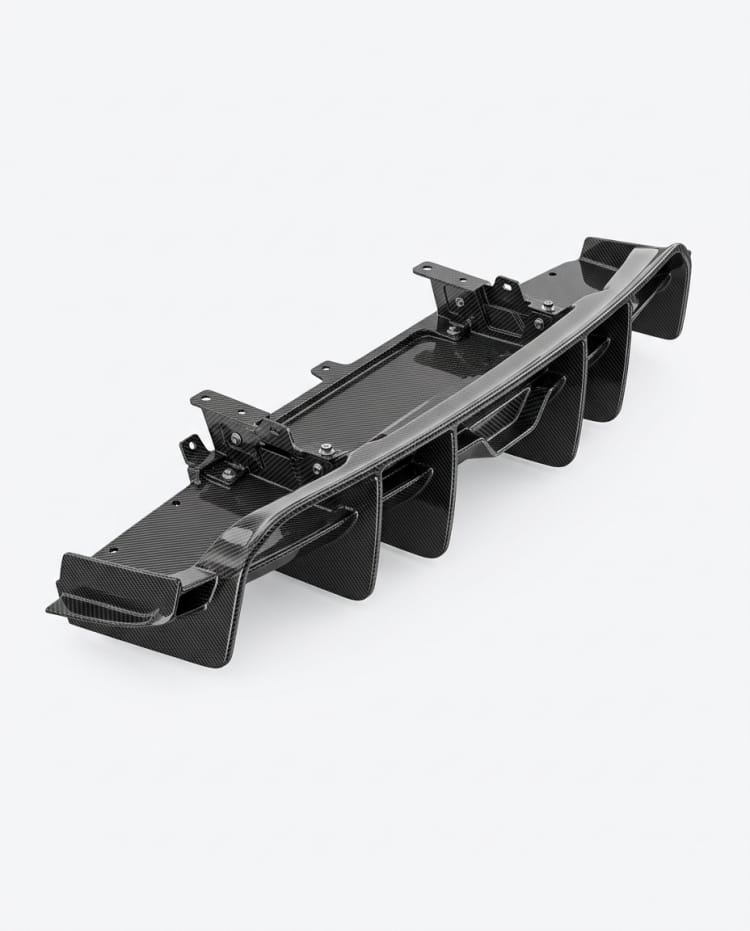

Review the mating part and use conditions. Compare bumper geometry and exhaust clearance with the supplied drawing, sample or site survey before approving the part definition.
Plan layup, trim and attachment references. Set the proposed build and interface details around mount points and road clearance; agree any unverified requirement before fabrication.

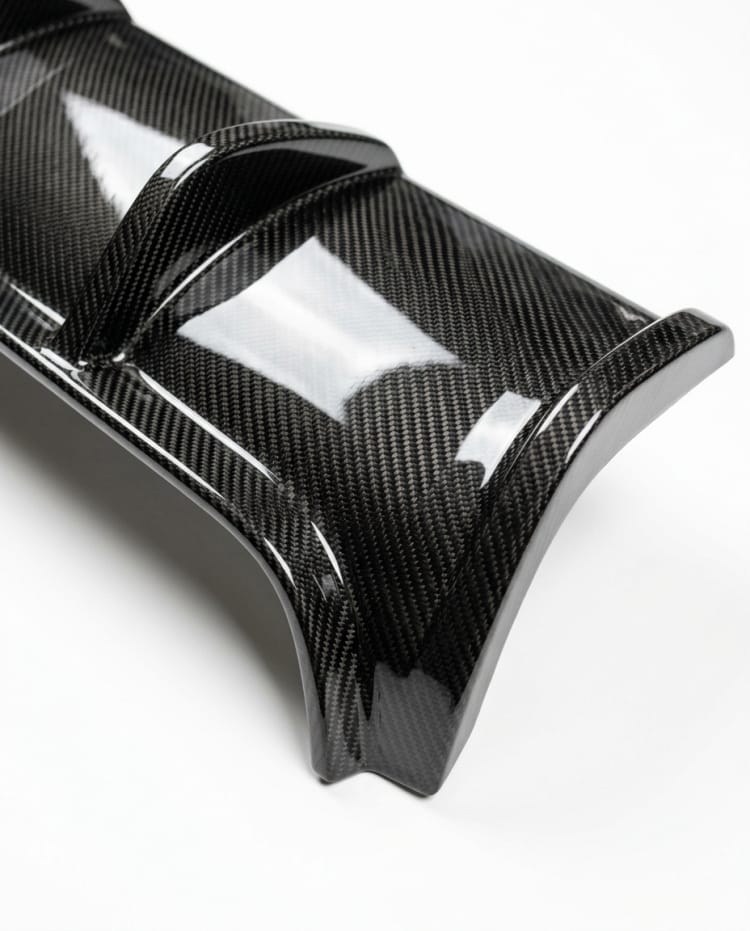

Check edge fit, visible finish and protection. Verify visible weave against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

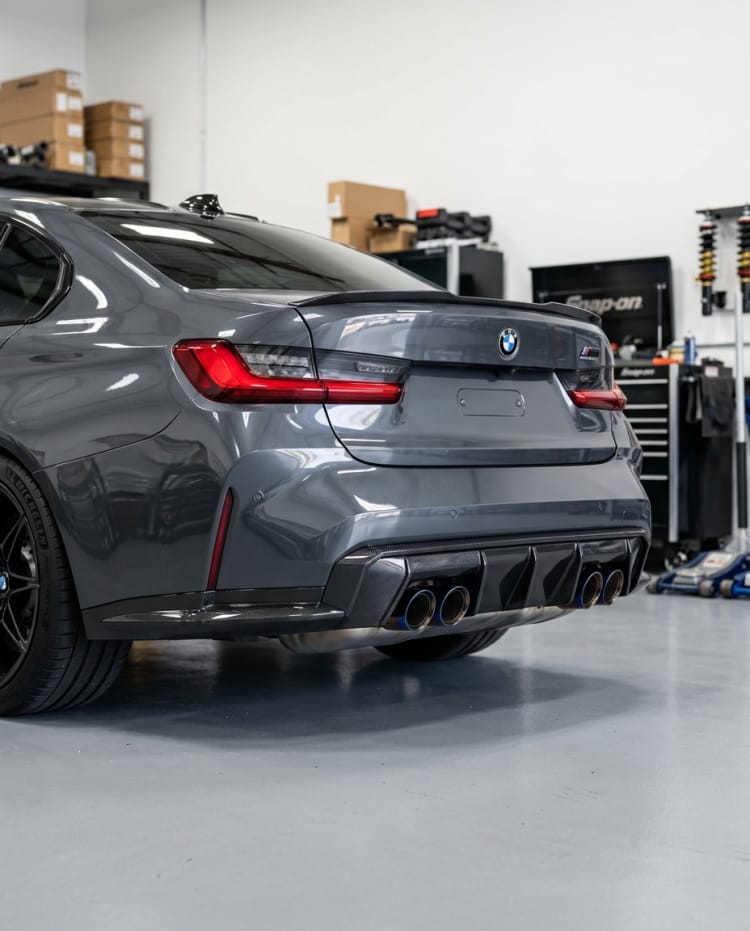

For a lower rear bumper aero element, confirm bumper geometry and exhaust clearance against the buyer drawings. The mating vehicle part and attachment method determine fit and visible gaps.
Custom options
Specify bumper geometry, exhaust clearance, mount points, road clearance and visible weave in the supplied drawings or project specification. These inputs guide part geometry, mounting and visible finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing bumper geometry and exhaust clearance, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show mount points and road clearance on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State visible weave, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
