Match the carbon fiber side vent trim to the mating part. Confirm vent opening and airflow; agree panel curvature, clip layout and weave alignment before tooling.
Project Type
Carbon Fiber Side Vent Trim
Core Material
Carbon Fiber
Lead Time
Confirmed After Design Review
Surface Finish
Clear-Coat Finish
How we make it
Review the mating part and use conditions for the carbon fiber side vent trim; define panel curvature and clip layout before fabrication and weave alignment before final inspection.
Review the mating part and use conditions. Compare vent opening and airflow with the supplied drawing, sample or site survey before approving the part definition.

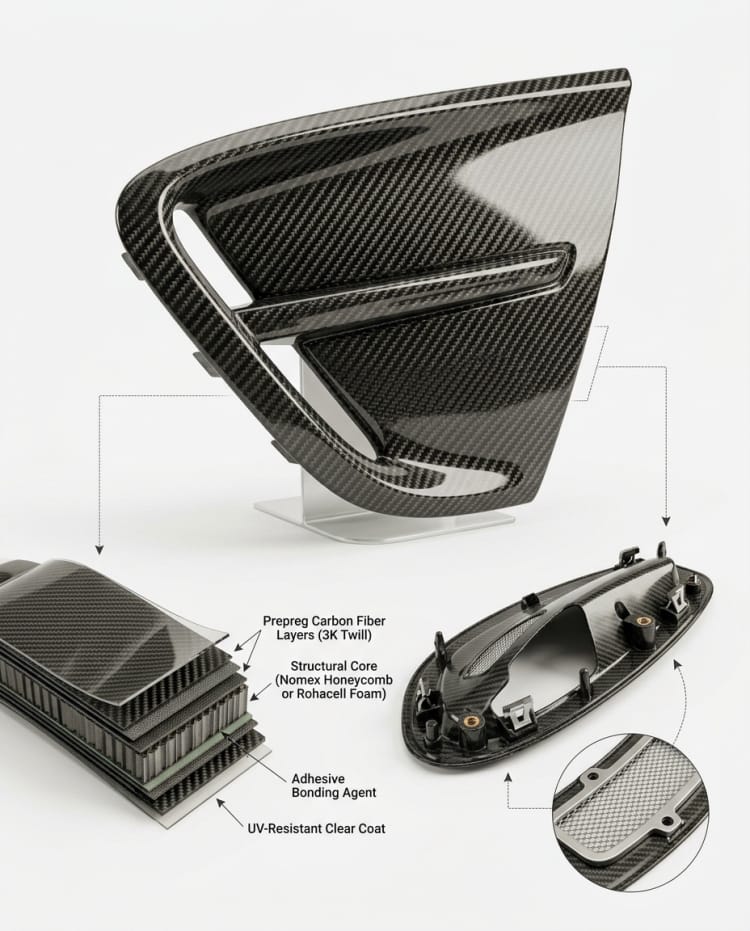

Plan layup, trim and attachment references. Set the proposed build and interface details around panel curvature and clip layout; agree any unverified requirement before fabrication.

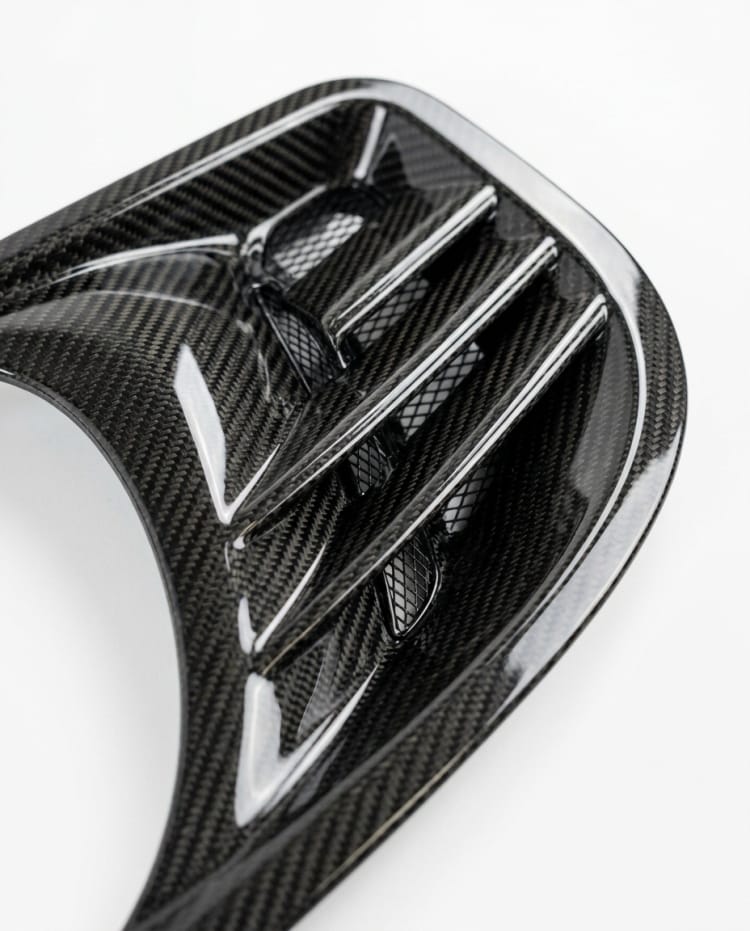

Check edge fit, visible finish and protection. Verify weave alignment against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

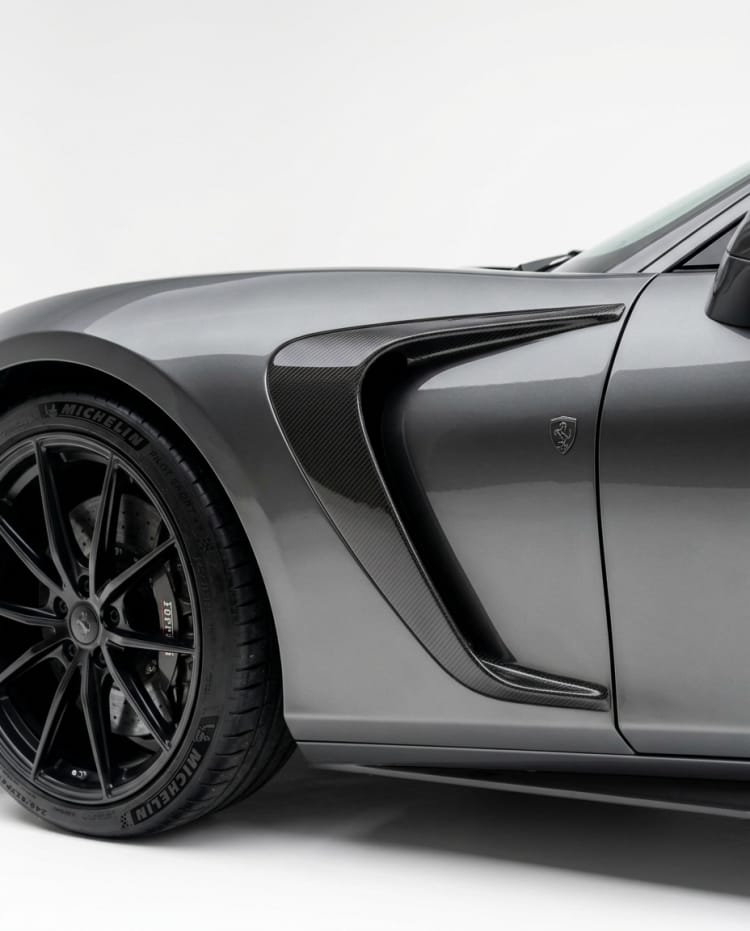

For trim around a side body vent, confirm vent opening and airflow against the buyer drawings. The mating vehicle part and attachment method determine fit and visible gaps.
Custom options
Specify vent opening, airflow, panel curvature, clip layout and weave alignment in the supplied drawings or project specification. These inputs guide part geometry, mounting and visible finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing vent opening and airflow, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show panel curvature and clip layout on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State weave alignment, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
