Sunshade panels work as part of the facade, not as isolated ornaments. Confirm their projection, solar orientation, support brackets, drainage and wind design brief.
Project Type
Decorative Sunshade Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP decorative sunshade panel; define support brackets and wind criteria before fabrication and drainage before final inspection.

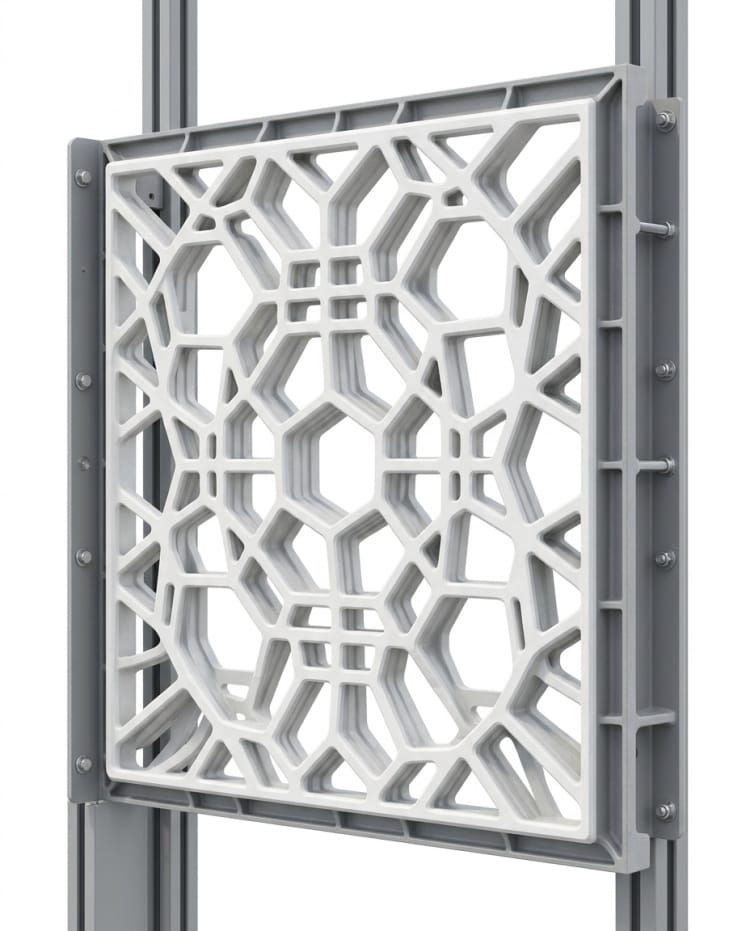

Review the elevation and supporting substrate. Compare solar orientation and panel projection with the supplied drawing, sample or site survey before approving the part definition.

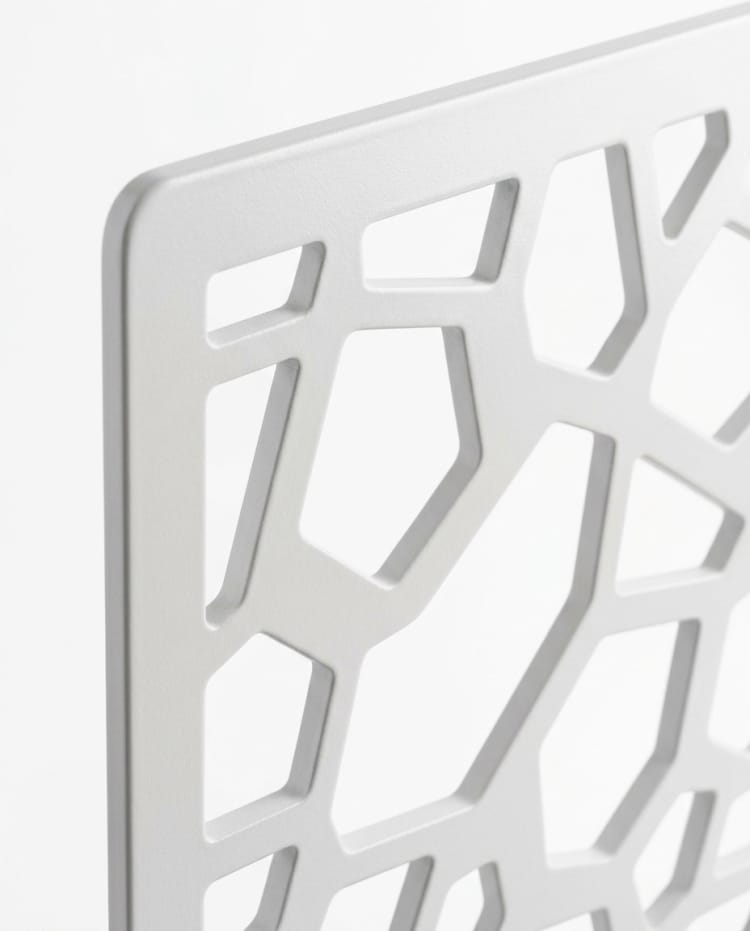

Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around support brackets and wind criteria; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify drainage against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

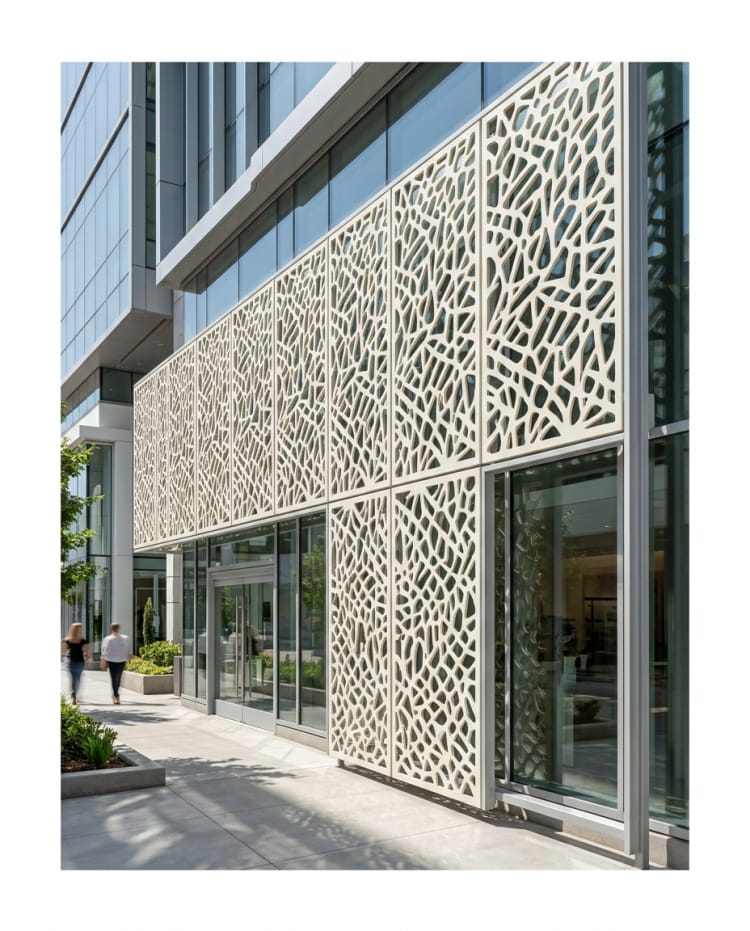

For a facade shade element, confirm solar orientation and panel projection against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify solar orientation, panel projection, support brackets, wind criteria and drainage in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing solar orientation and panel projection, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show support brackets and wind criteria on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State drainage, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
