Set out the FRP entry canopy fascia from the building drawing. Confirm canopy perimeter and panel returns; agree drip edge, fixing points and adjacent flashing before tooling.
Project Type
Entry Canopy Fascia
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP entry canopy fascia; define drip edge and fixing points before fabrication and adjacent flashing before final inspection.
Review the elevation and supporting substrate. Compare canopy perimeter and panel returns with the supplied drawing, sample or site survey before approving the part definition.
Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around drip edge and fixing points; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify adjacent flashing against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

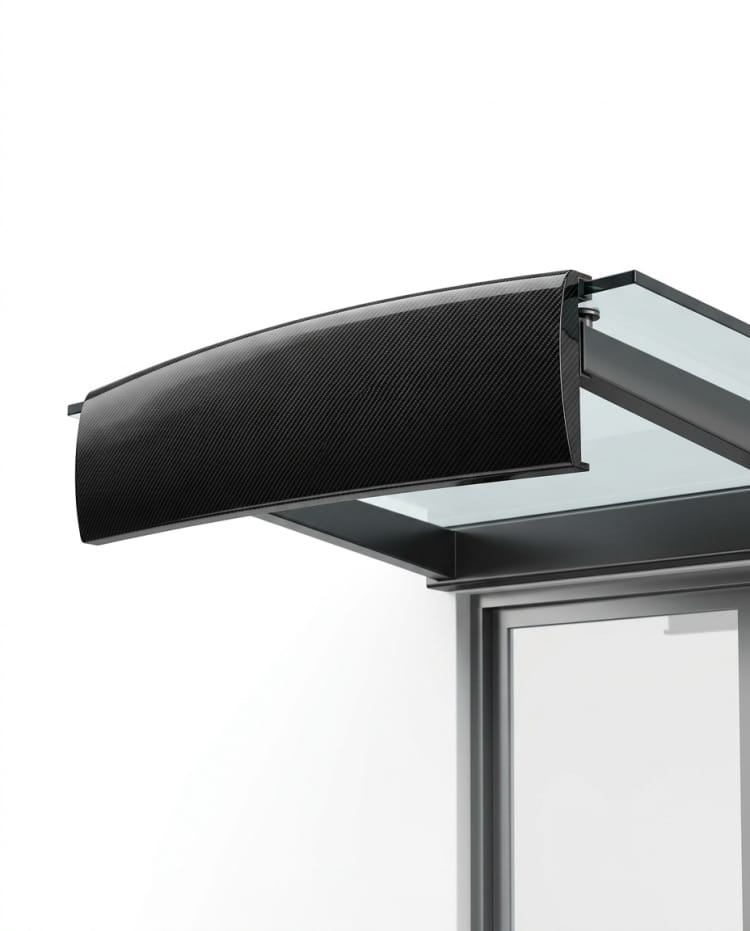

For the visible edge of an entrance canopy, confirm canopy perimeter and panel returns against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify canopy perimeter, panel returns, drip edge, fixing points and adjacent flashing in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing canopy perimeter and panel returns, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show drip edge and fixing points on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State adjacent flashing, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
