Set out the FRP exterior wall feature panel from the building drawing. Confirm elevation grid and backing wall; agree panel joints and openings before tooling.
Project Type
Exterior Wall Feature Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP exterior wall feature panel; define panel joints and openings before fabrication and finish sample and access for fitting before final inspection.

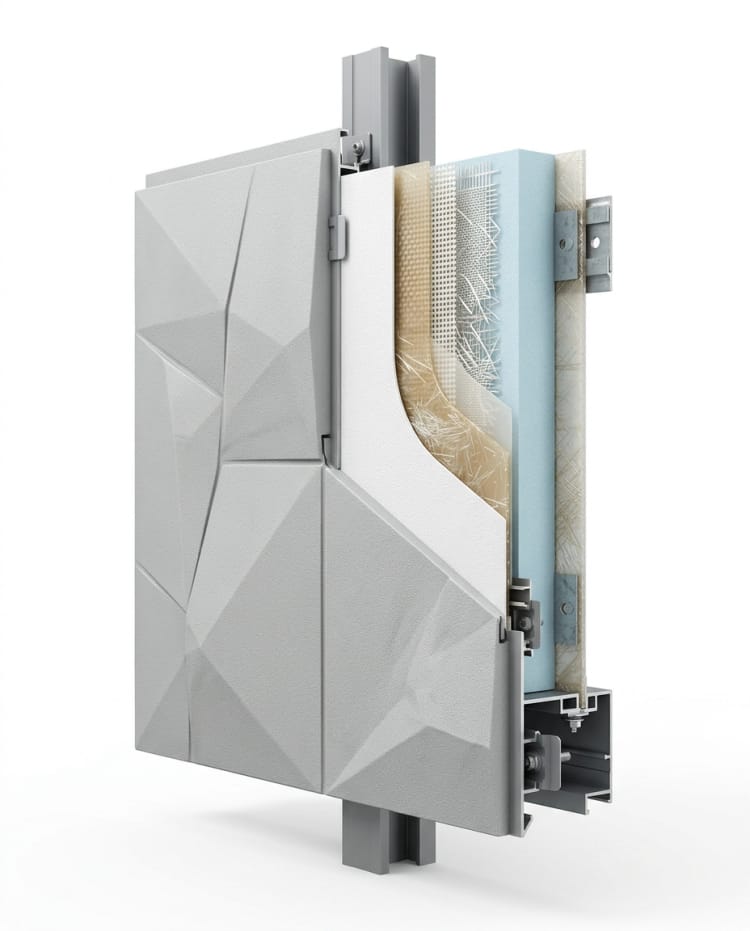

Review the elevation and supporting substrate. Compare elevation grid and backing wall with the supplied drawing, sample or site survey before approving the part definition.
Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around panel joints and openings; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify finish sample and access for fitting against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

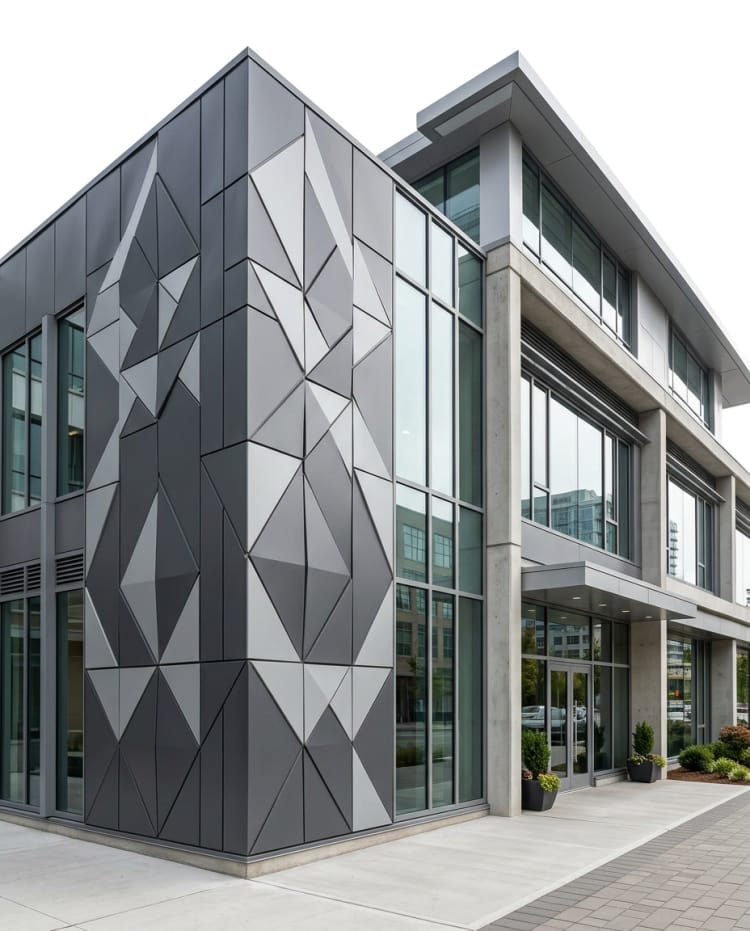

For a focal wall area on a building exterior, confirm elevation grid and backing wall against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify elevation grid, backing wall, panel joints, openings, finish sample and access for fitting in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing elevation grid and backing wall, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show panel joints and openings on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State finish sample and access for fitting, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
