Set out the FRP facade corner wrap panel from the building drawing. Confirm corner angle and adjacent panel depths; agree joint position, substrate and tolerances before tooling.
Project Type
Facade Corner Wrap Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it

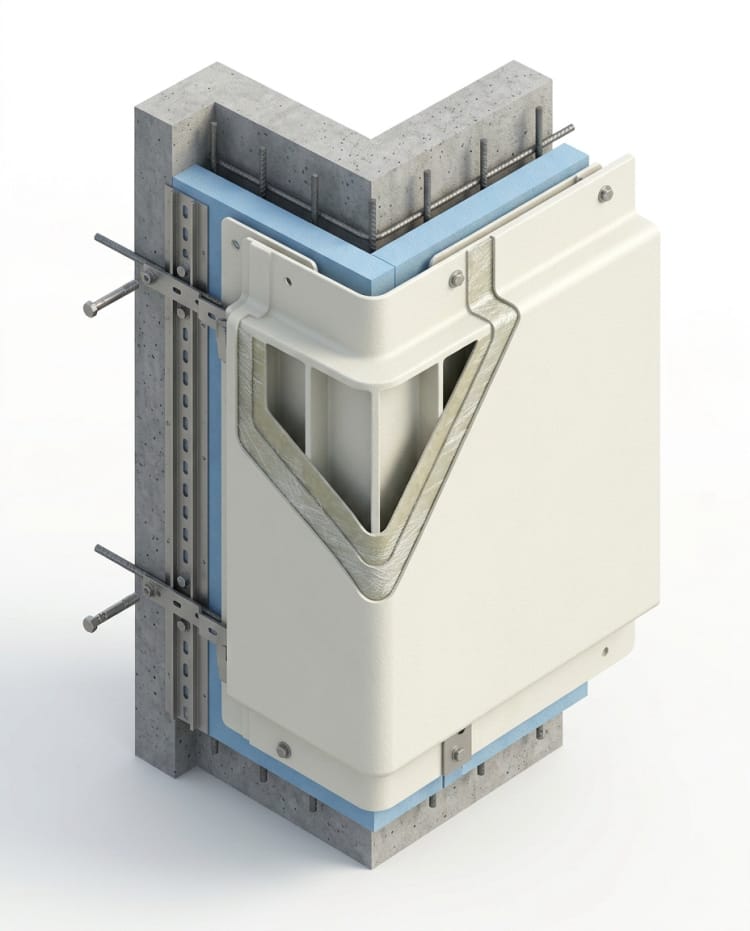

Review the elevation and supporting substrate for the FRP facade corner wrap panel; define joint position and substrate before fabrication and tolerances before final inspection.
Review the elevation and supporting substrate. Compare corner angle and adjacent panel depths with the supplied drawing, sample or site survey before approving the part definition.
Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around joint position and substrate; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify tolerances against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

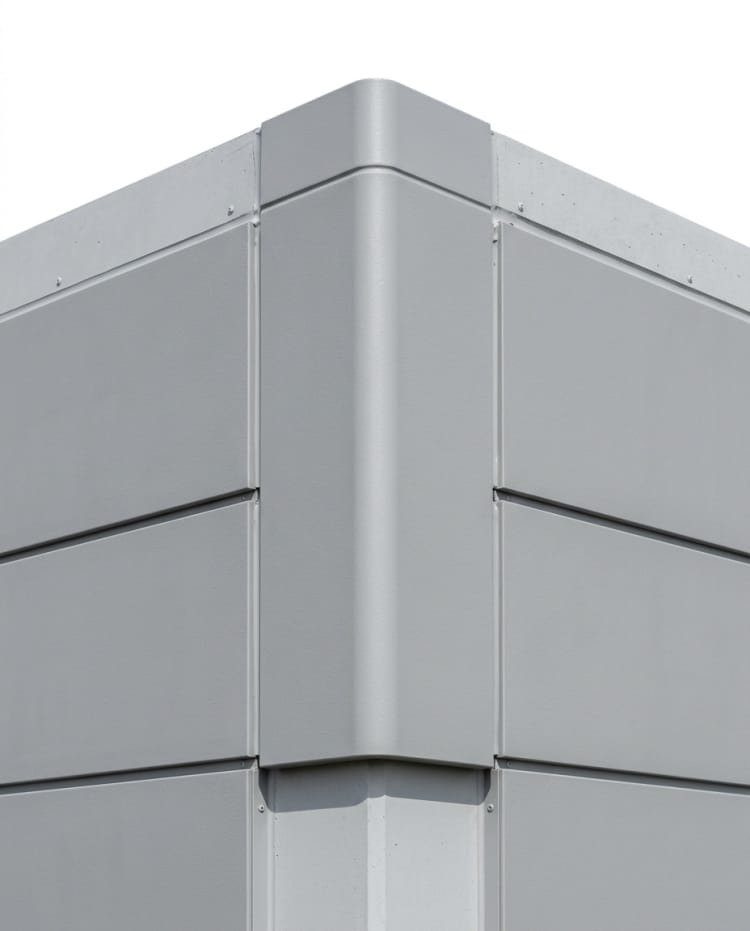

For a continuous visual wrap at a building corner, confirm corner angle and adjacent panel depths against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify corner angle, adjacent panel depths, joint position, substrate and tolerances in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing corner angle and adjacent panel depths, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show joint position and substrate on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State tolerances, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
