Set out the FRP decorative louver panel from the building drawing. Confirm blade angle and spacing; agree airflow requirement, panel supports and cleaning access before tooling.
Project Type
Decorative Louver Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP decorative louver panel; define airflow requirement and panel supports before fabrication and cleaning access before final inspection.
Review the elevation and supporting substrate. Compare blade angle and spacing with the supplied drawing, sample or site survey before approving the part definition.

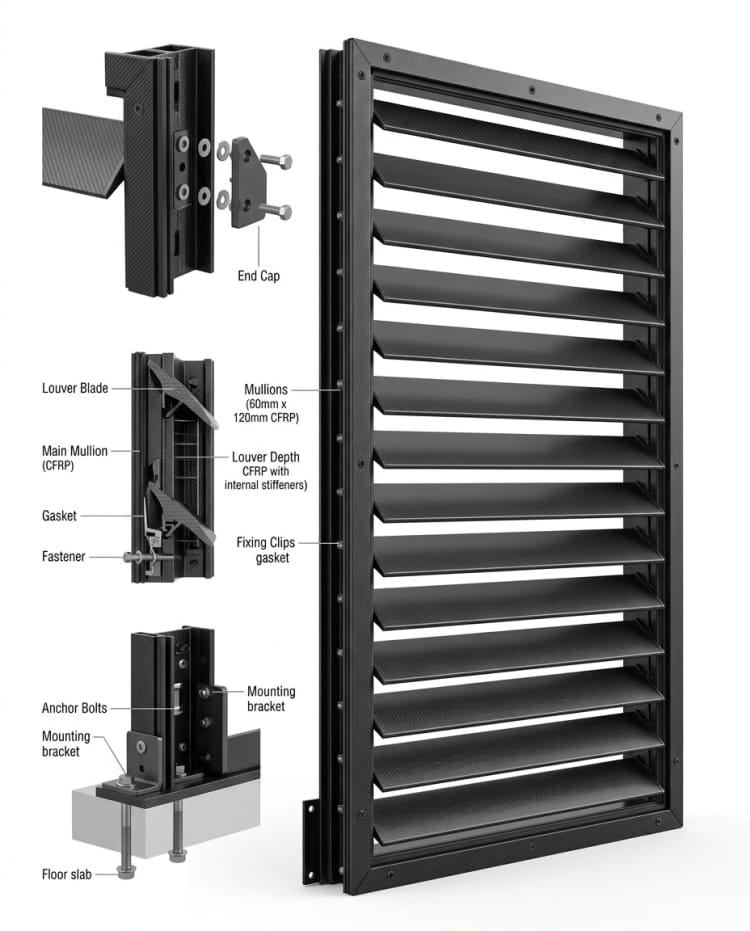

Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around airflow requirement and panel supports; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify cleaning access against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

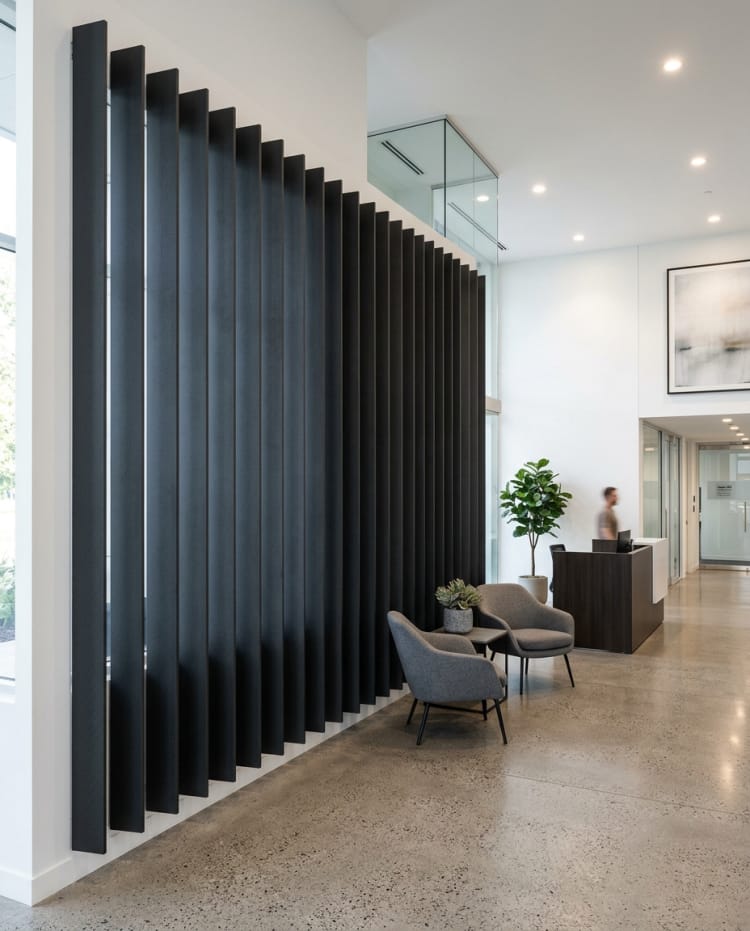

For decorative louvers on a facade or screen, confirm blade angle and spacing against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify blade angle, spacing, airflow requirement, panel supports and cleaning access in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing blade angle and spacing, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show airflow requirement and panel supports on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State cleaning access, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
