Use the OEM device drawing to define the FRP mobile X-ray unit housing: cart geometry, wheel and handle clearances. Agree cable routing, removable panels and cleaning before tooling.
Project Type
Mobile X-Ray Unit Housing
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the device drawing and service zones for the FRP mobile x-ray unit housing; define cable routing and removable panels before fabrication and cleaning before final inspection.

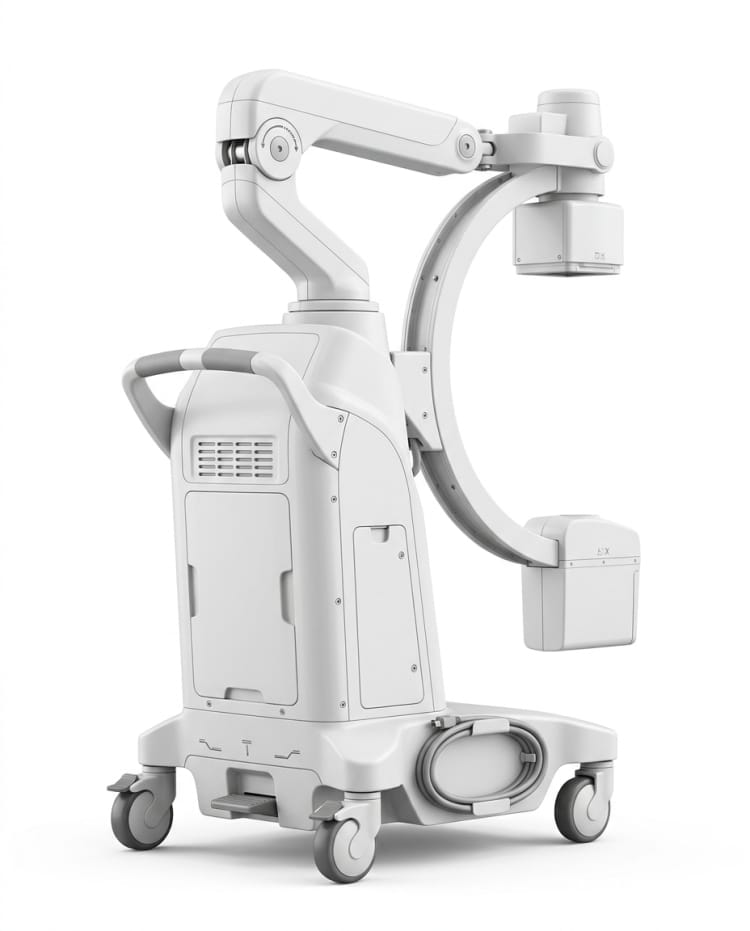

Review the device drawing and service zones. Compare cart geometry and wheel and handle clearances with the supplied drawing, sample or site survey before approving the part definition.
Plan the shell, openings and removable interfaces. Set the proposed build and interface details around cable routing and removable panels; agree any unverified requirement before fabrication.

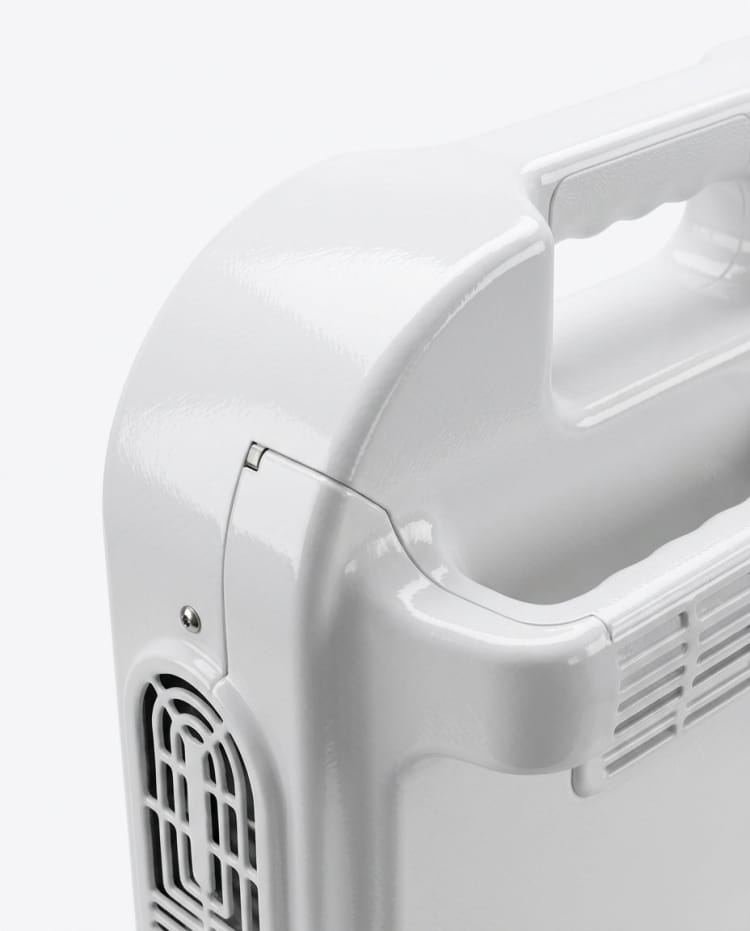

Check the OEM finish and assembly reference. Verify cleaning against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

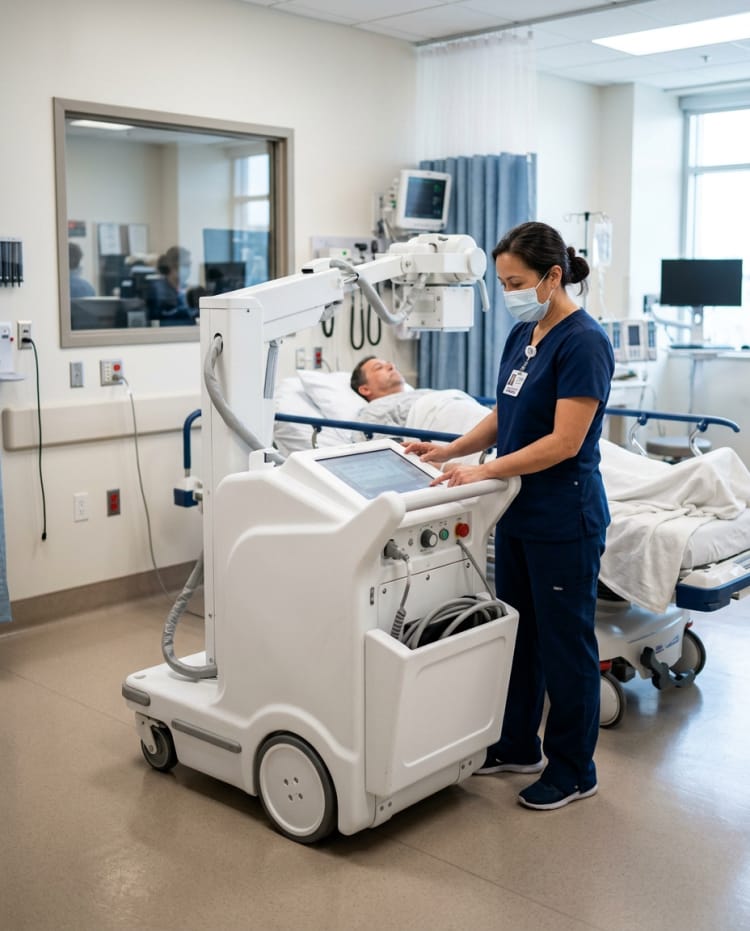

For the shell of a mobile X-ray unit, confirm cart geometry and wheel and handle clearances against the buyer drawings. The device OEM specifies maintenance access and cleaning requirements.
Custom options
Specify cart geometry, wheel and handle clearances, cable routing, removable panels and cleaning in the supplied drawings or project specification. These inputs guide shell geometry, service access and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing cart geometry and wheel and handle clearances, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show cable routing and removable panels on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State cleaning, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
