Match the FRP quarter panel extension to the vehicle reference. Confirm wheel-arch position and door clearance; agree join line, body reference and attachment method before tooling.
Project Type
Quarter Panel Extension
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Match the vehicle reference and adjacent parts for the FRP quarter panel extension; define join line and body reference before fabrication and attachment method before final inspection.
Match the vehicle reference and adjacent parts. Compare wheel-arch position and door clearance with the supplied drawing, sample or site survey before approving the part definition.
Plan the panel, returns and mounting interfaces. Set the proposed build and interface details around join line and body reference; agree any unverified requirement before fabrication.
Check fit references, visible edges and transit protection. Verify attachment method against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

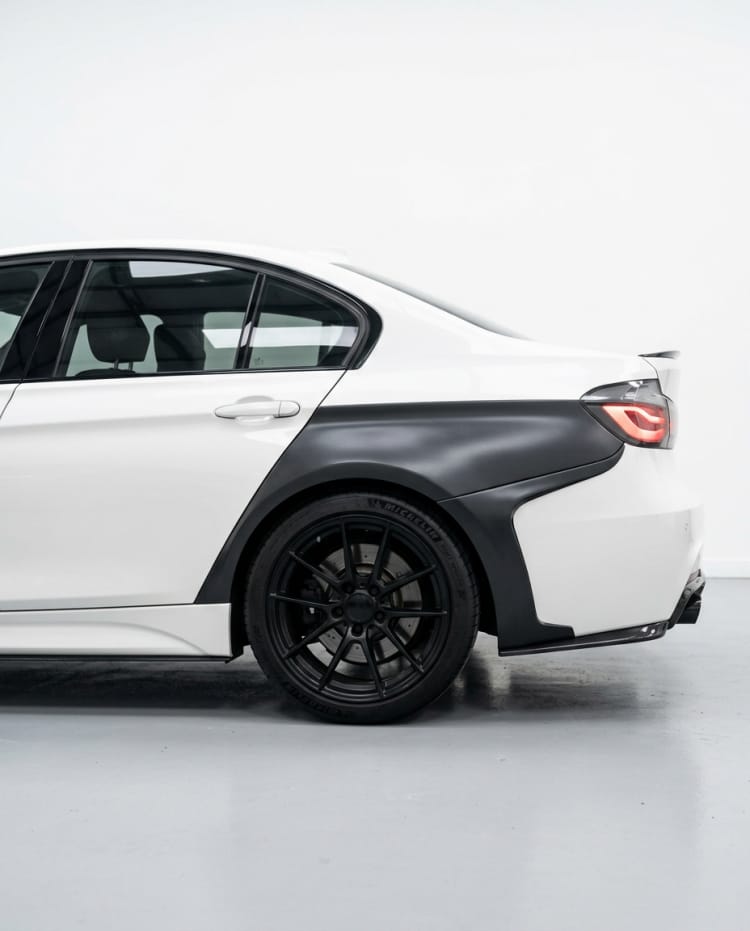

For an extension to a vehicle rear quarter panel, confirm wheel-arch position and door clearance against the buyer drawings. Fit depends on the vehicle reference and adjacent panels.
Custom options
Specify wheel-arch position, door clearance, join line, body reference and attachment method in the supplied drawings or project specification. These inputs guide panel geometry, mounting, clearances and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing wheel-arch position and door clearance, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show join line and body reference on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State attachment method, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
