Set out the FRP roof edge fascia panel from the building drawing. Confirm roof perimeter and drip detail; agree panel joins, support and weatherproofing boundary before tooling.
Project Type
Roof Edge Fascia Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP roof edge fascia panel; define panel joins and support before fabrication and weatherproofing boundary before final inspection.
Review the elevation and supporting substrate. Compare roof perimeter and drip detail with the supplied drawing, sample or site survey before approving the part definition.

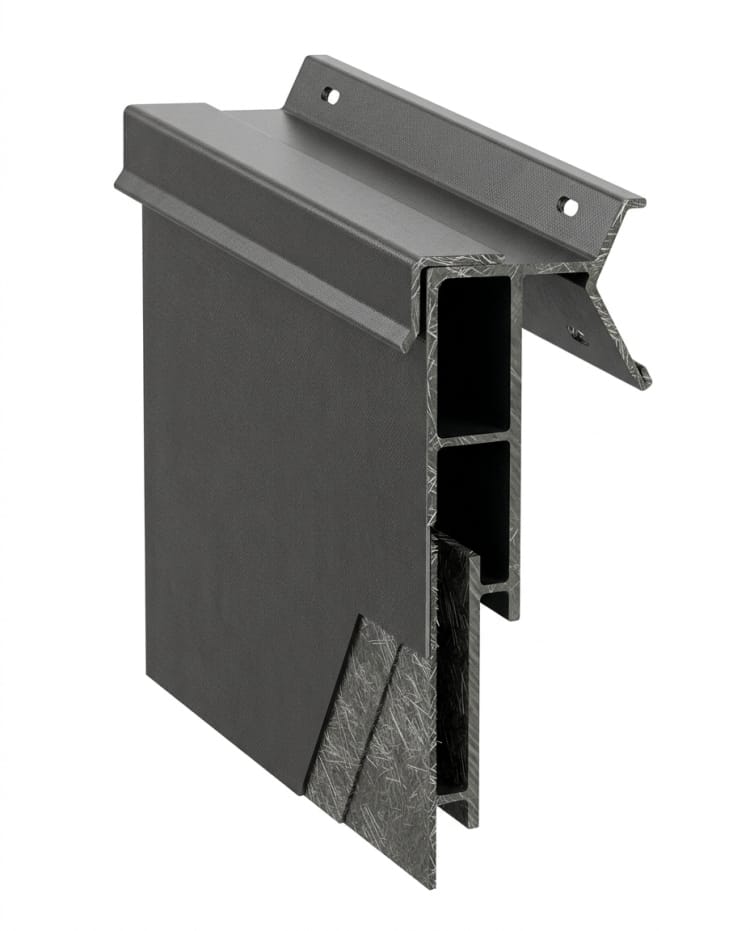

Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around panel joins and support; agree any unverified requirement before fabrication.
Check joints, finish reference and installation marking. Verify weatherproofing boundary against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

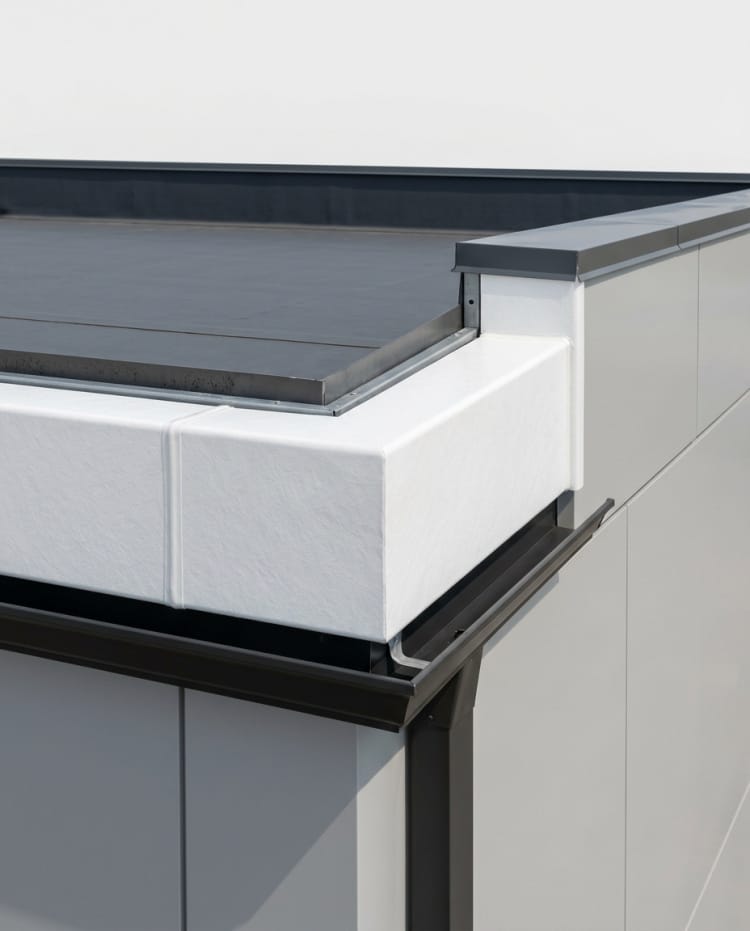

For the visible edge of a roof line, confirm roof perimeter and drip detail against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify roof perimeter, drip detail, panel joins, support and weatherproofing boundary in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing roof perimeter and drip detail, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show panel joins and support on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State weatherproofing boundary, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
