Set out the FRP soffit ceiling panel from the building drawing. Confirm soffit grid and support; agree access hatches, lighting openings and moisture exposure before tooling.
Project Type
Soffit Ceiling Panel
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it
Review the elevation and supporting substrate for the FRP soffit ceiling panel; define access hatches and lighting openings before fabrication and moisture exposure before final inspection.
Review the elevation and supporting substrate. Compare soffit grid and support with the supplied drawing, sample or site survey before approving the part definition.

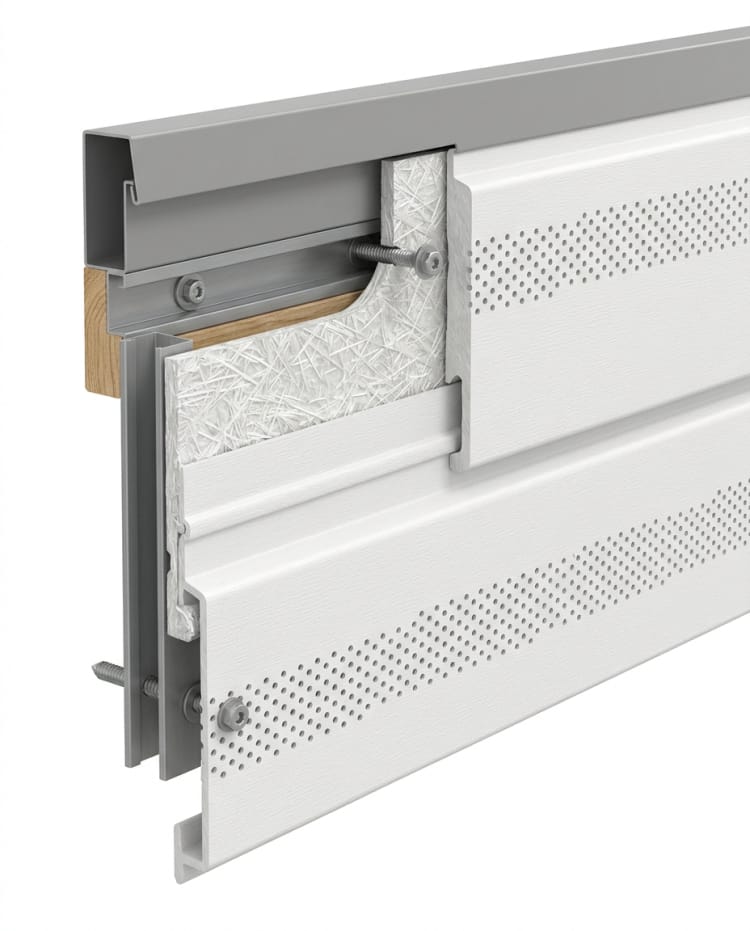

Plan the profile, modules and fixing interfaces. Set the proposed build and interface details around access hatches and lighting openings; agree any unverified requirement before fabrication.

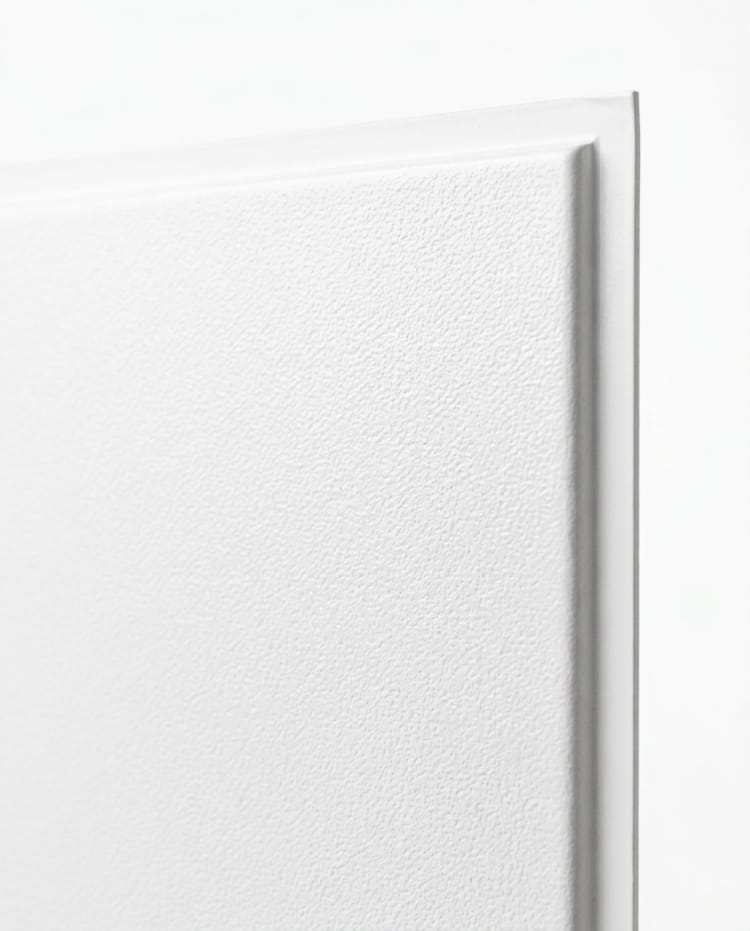

Check joints, finish reference and installation marking. Verify moisture exposure against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

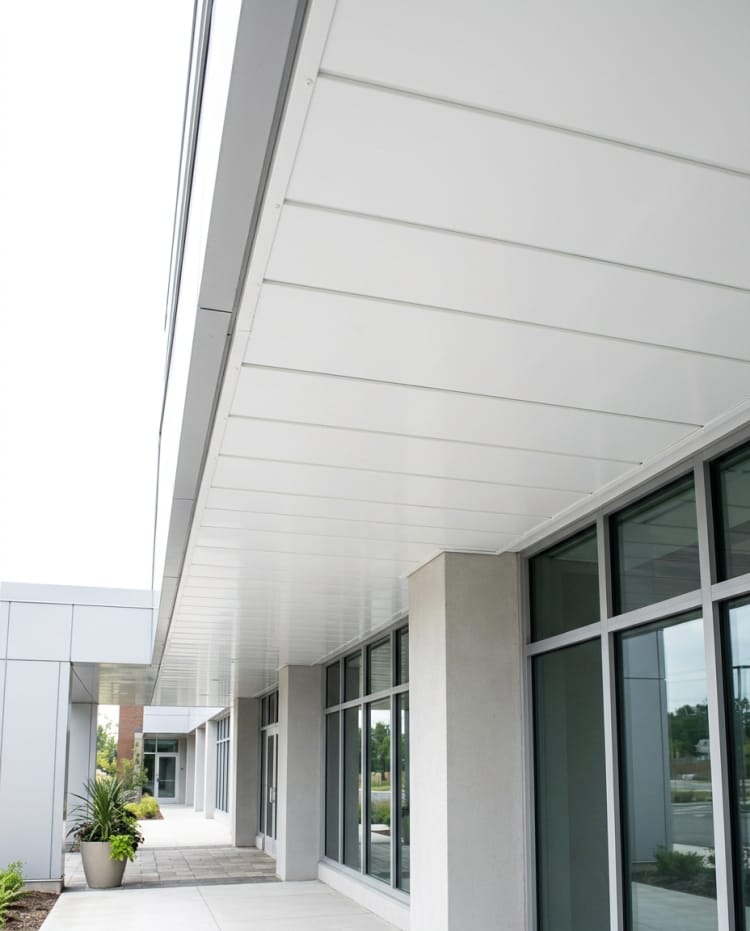

For an underside panel at a canopy or building overhang, confirm soffit grid and support against the buyer drawings. Site measurements and the support structure determine panel fit.
Custom options
Specify soffit grid, support, access hatches, lighting openings and moisture exposure in the supplied drawings or project specification. These inputs guide profile, joints, fixing and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing soffit grid and support, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show access hatches and lighting openings on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State moisture exposure, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
