The ultrasound console shell has to accommodate the screen, probes and rolling base. Use the OEM layout to place cable routes, ventilation and surfaces that need cleaning.
Project Type
Ultrasound Console Housing
Core Material
FRP
Lead Time
Confirmed After Design Review
Surface Finish
Painted Finish
How we make it

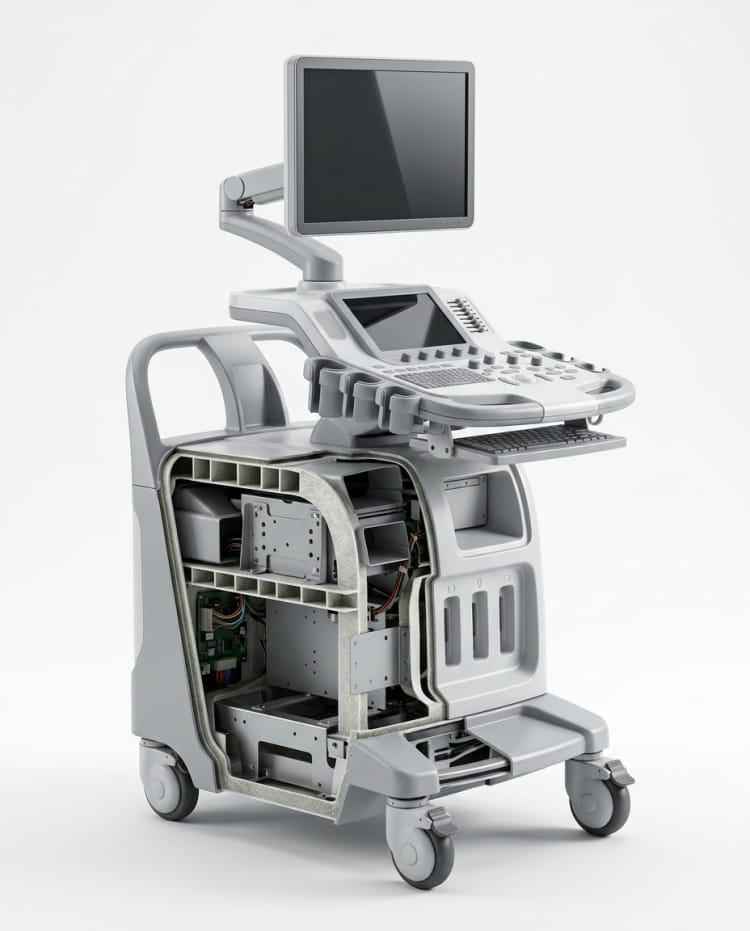

Review the device drawing and service zones for the FRP ultrasound console housing; define wheel base and ventilation before fabrication and cleaning before final inspection.
Review the device drawing and service zones. Compare screen and probe storage and cable routing with the supplied drawing, sample or site survey before approving the part definition.
Plan the shell, openings and removable interfaces. Set the proposed build and interface details around wheel base and ventilation; agree any unverified requirement before fabrication.
Check the OEM finish and assembly reference. Verify cleaning against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications
For an ultrasound cart or console enclosure, confirm screen and probe storage and cable routing against the buyer drawings. The device OEM specifies maintenance access and cleaning requirements.
Custom options
Specify screen and probe storage, cable routing, wheel base, ventilation and cleaning in the supplied drawings or project specification. These inputs guide shell geometry, service access and finish.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing screen and probe storage and cable routing, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show wheel base and ventilation on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State cleaning, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
