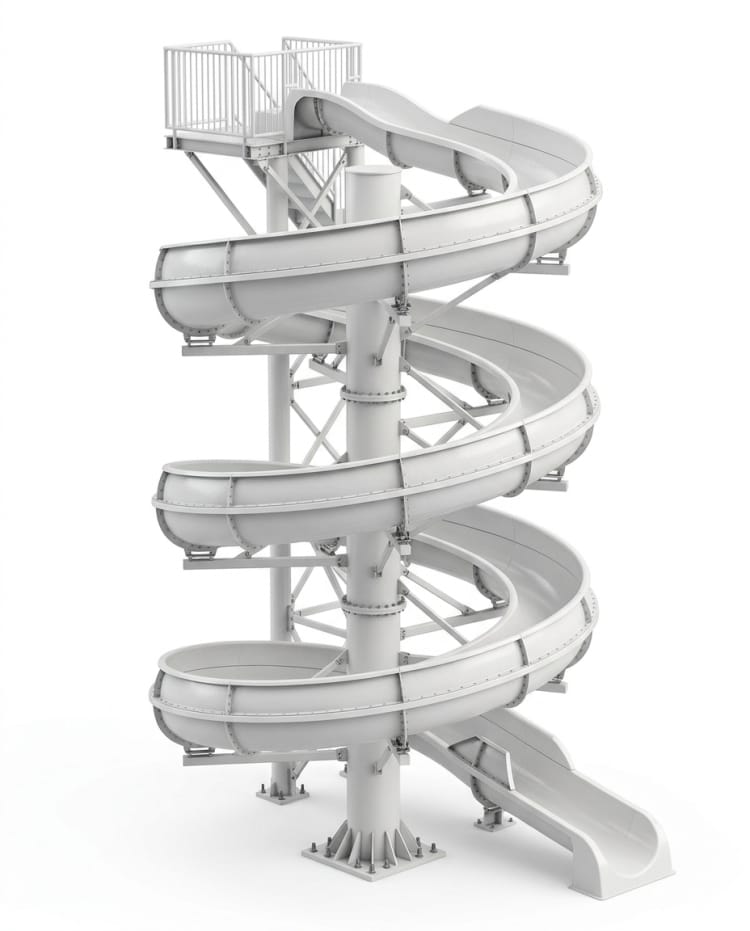

Spiral slide sections must follow the approved route from launch to exit. We coordinate curve radii, support positions, water feed and shipping splits against the site plan.
Project Type
Spiral Water Slide
Core Material
FRP with Steel Supports
Lead Time
Confirmed After Design Review
Surface Finish

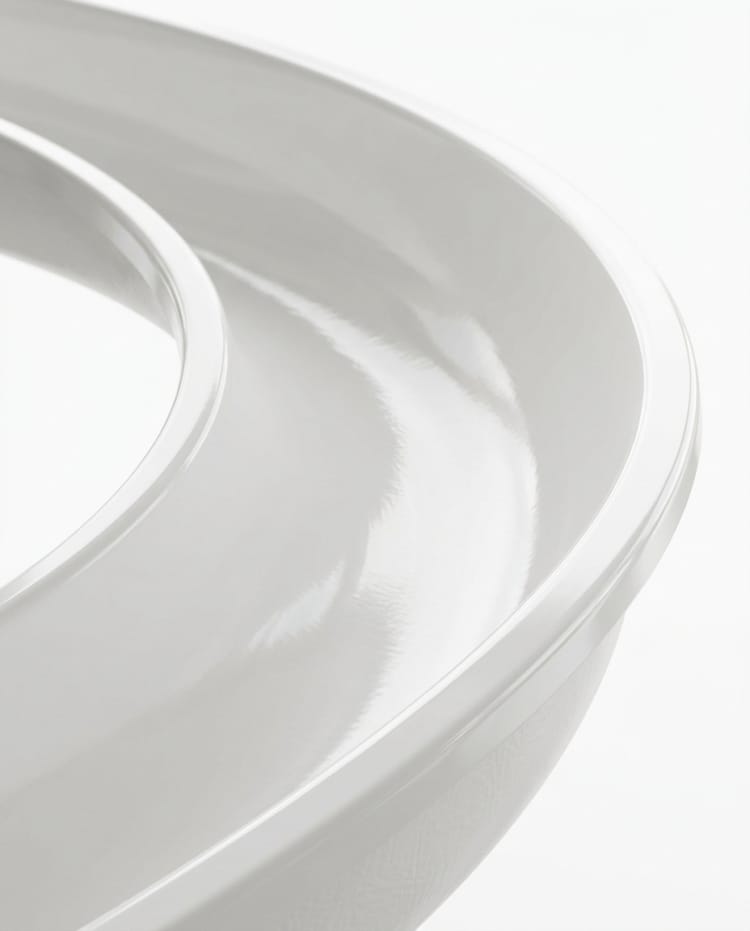

Gelcoat Finish
How we make it
Review the approved aquatic layout for the spiral water slide; define support positions and section joints before fabrication and water feed and landing before final inspection.
Review the approved aquatic layout. Compare route radius and start and exit levels with the supplied drawing, sample or site survey before approving the part definition.
Plan shell sections, supports and water interfaces. Set the proposed build and interface details around support positions and section joints; agree any unverified requirement before fabrication.
Check joints, finish and delivery sections. Verify water feed and landing against the agreed inspection plan and protect the part for its delivery route.
Scope at a glance
Applications

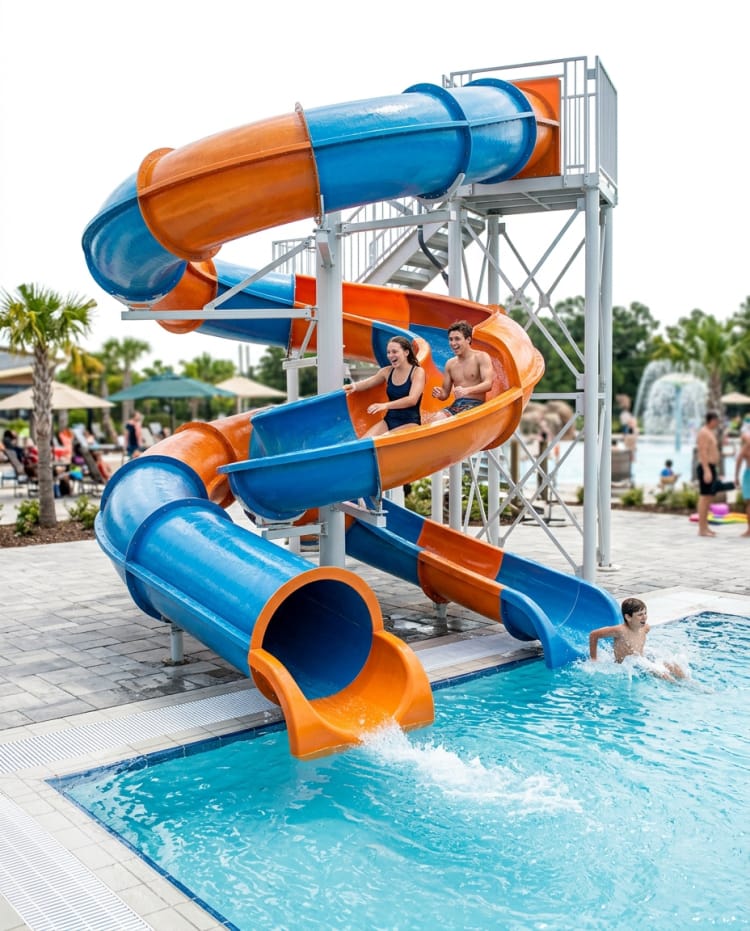

A spiral water slide follows the approved route and support plan. Curve radii, start and exit elevations, water-feed connection, and section joints must be coordinated before tooling.
Custom options
Provide the slide route, elevations, curve radii, section joints, support plan, and water-feed interface.
Browse nearby applications using the same category and manufacturing approach.
Need to know
Send a drawing or sample showing route radius and start and exit levels, together with the mating equipment or site reference. GFIND can review feasibility against these inputs.
Show support positions and section joints on the approved drawing. The buyer and GFIND should agree the related fit tolerances and inspection method before tooling.
State water feed and landing, expected quantity and delivery constraints. List any inspection records or tests the buyer requires in the RFQ.
